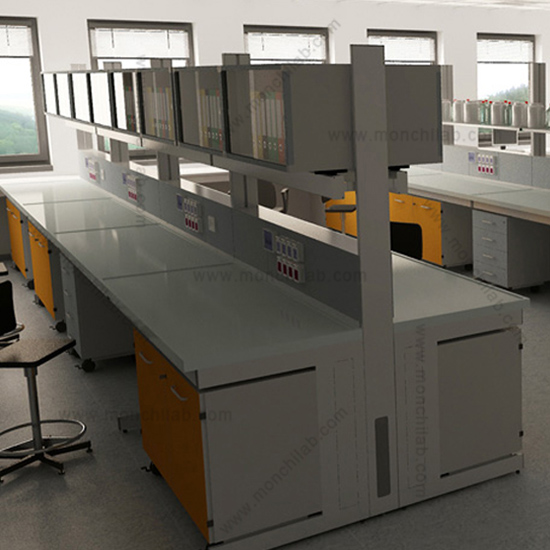

Lab Island Bench with Hanging Cabinet

Name:Lab Island Bench with Hanging Cabinet

 Steel-Wood Lab Island Bench

Optional structure and material as following:

  • Floor Mounted Full Steel Lab Bench
  • Floor Mounted Full Wood Lab Bench
  • C-Frame All Steel Lab Bench
  • C-Frame Steel-Wood Lab Bench
  • H-Frame Steel-Wood Lab Bench
  • H-Frame All Steel Lab Bench
  • Stainless Steel Lab Bench


Product Description

Product Description





Structure



C-frame, H-frame (60*40*1.5mm)


Custom-made



Dimension, Color







Worktop


  • 15mm/20mm/25mm thickness Epoxy Resin, Black Color
  • 12.7mm/16mm/19mm thickness Phenolic resin
  • 15mm/20mm/25mm thickness 304 Stainless Steel
  • 20mm thickness laboratory grade ceramic tops







Cabinet


The cabinet is made of 18mm thickness good quality MDF melamine chipboard and all joints are water proofed by 2mm thickness quality PVC. Cabinets include adjustable corrosion resistant feet which provide support and acts as a vibration damper.

The base cabinet is a combination of cupboard and drawer.




Reagent Shelf


The shelves are made of 1.2mm cold-rolled steel coated with epoxy resin powder.

layers are made of 12mm thickness tempered glass or 1.2mm cold-rolled steel coated with epoxy resin powder, can be adjustable according to different requirement


Handles


Integrated with door and drawer


Accessories:


Faucet


Brass body with ceramic valve core coated with epoxy resin powder.


Sink

PP sink; epoxy resin sink; ceramic sink; Stainless Steel sink.


Socket


Electric sockets, electric circuit breakers and the telephone and computer outlets are located on

this electrical trunking made of PVC and anchored to the shelf vertical supports


Drip rack


Drip rack can be made in different shapes and material depending on their location and task.
