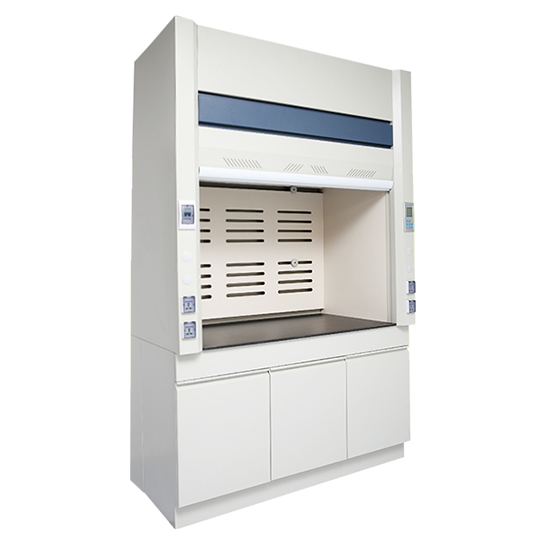

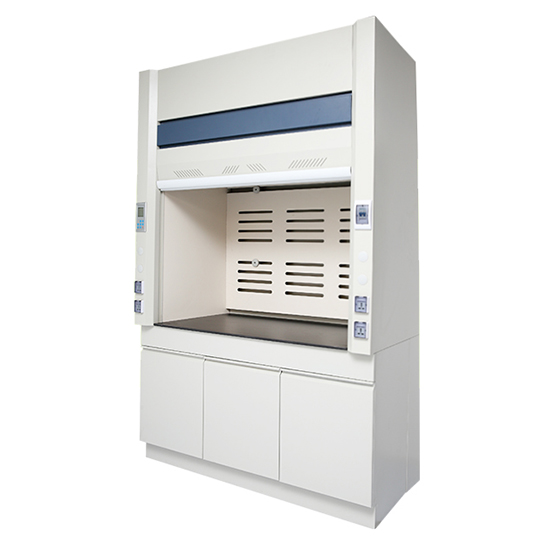

Explosion Proof Laboratory Fume Hood
Name: | Explosion Proof Laboratory Fume Hood |
---|
Standrad Size: (W*D*H: mm)
1200*800*2350
1500*800*2350
1800*800*2350
Other material for choice:
stainless steel, steel and wood, PP, FRP
Product Description
Product Description
1.Casework: 1.2mm thickness of cold-rolled steel plate, after acid washing, phosphide andelectrophoresis, sprayed with good quality anti-corrosion static coating.
2.Inside Lining: 4mm thickness of Compact.
2.Inside Lining: 4mm thickness of Compact.
3.Worktop: 12.7mm chemical-resistant laminate, install with a hurdle to prevent spillage of liquid.
4.Sash: 6mm of tempered glass.
5.Sash Handle: 2mm Cold-rolled steel powered with epoxy coating.
6.Illumination: with not less than 300 Lux 30W fluorescent lamp set.
7.Cupsink: Oval shaped PP Cupsink
8.Water Tap: Molded in one piece copper water tap, epoxy powder coating surface with a ceramic valve.
9.Exhausting Duct: Anti-corrosion Fiberglass duct.
10.Technical specification: Noise: less than 60db (International standard)
11.Face velocity: 0.5m/s
12.Function: With an intelligent automatic delay protection device to exhaust residual corrosion air completely and prolong the service time of fume hood.
Optional accessories |
Worktop |
Phenolic resin worktop |
Epoxy resin worktop |
||
Ceramic worktop |
||
Stainless steel worktop |
||
Tempered worktop |
||
Movable base cabinet |
||
PP cup sink (embedded in the worktop) |
||
Fan |
||
Wind valve |
||
Water valve |
||
Gas valve |
||
Compressed air valve |
