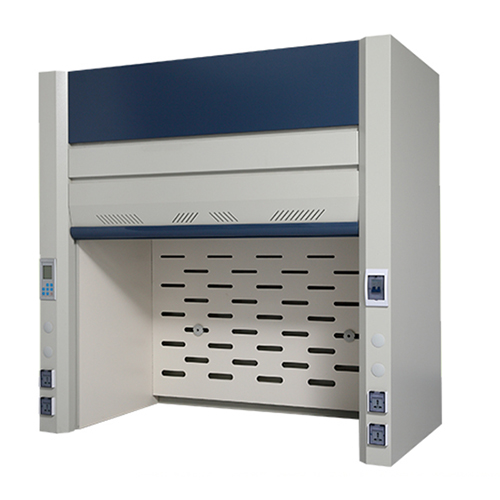

University Laboratory Bench Top Fume Hood

Name:University Laboratory Bench Top Fume Hood

Standrad Size: (W*D*H: mm)
1200*800*1500
1500*800*1500
1800*800*1500

Other material for choice:
stainless steel, steel and wood, PP, FRP

Product Description

Product Description


1.Casework: 1.2mm thickness of cold-rolled steel plate, after acid washing, phosphide andelectrophoresis, sprayed with good quality anti-corrosion static coating.

2.Inside Lining: 4mm thickness of Compact.

3.Sash: 6mm of tempered glass.

4.Sash Handle: 2mm Cold-rolled steel powered with epoxy coating.

5.Illumination: with not less than 300 Lux 30W fluorescent lamp set.

6.Exhausting Duct: Anti-corrosion Fiberglass duct.

7.Technical specification: Noise: less than 60db (International standard)

8.Face velocity: 0.5m/s

9.Function: With an intelligent automatic delay protection device to exhaust residual corrosion air completely and prolong the service time of fume hood.




Optional accessories

Worktop

Phenolic resin worktop

Epoxy resin worktop

Ceramic worktop

Stainless steel worktop

Tempered worktop

Movable base cabinet

PP cup sink (embedded in the worktop)

Fan

Wind valve

Water valve

Gas valve

Compressed air valve
